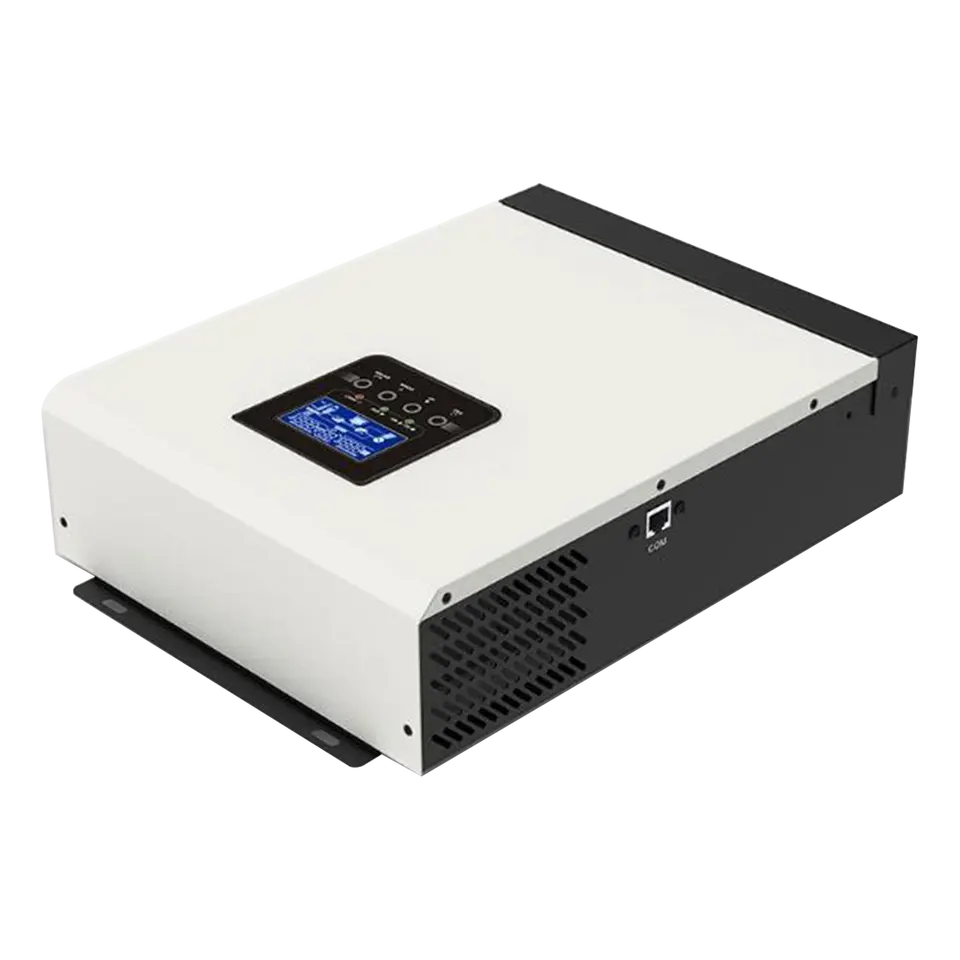

Skymico F2 3500VA 3500W Off Grid Solar Inverter With Built In 80A MPPT Solar Controller
Publish time 2023-07-13 18:33
Skymico F2 3500VA 3500W Off Grid Solar Inverter With Built In 80A MPPT Solar Controller
Features of 24VDC solar power inverter
1.Pure sine wave inverter (Off Grid Solar Inverter ) 2.Built-in MPPT solar charge controller 3.Selectable input voltage range for home appliances and personal computers. 4.Selectable charging current based on applications 5.Configurable AC/Solar input priority via LCD setting 6.Compatible to mains voltage or generator power 7.Auto restart while AC is recovering 8.Overload and short circuit protection 9.Smart battery charger design for optimized battery performance 10.Cold start function
Skymico F2 3500VA 3500W Off Grid Solar Inverter With Built In 80A MPPT Solar Controller
Features of 24VDC solar power inverter
1.Pure sine wave inverter (Off Grid Solar Inverter ) 2.Built-in MPPT solar charge controller 3.Selectable input voltage range for home appliances and personal computers. 4.Selectable charging current based on applications 5.Configurable AC/Solar input priority via LCD setting 6.Compatible to mains voltage or generator power 7.Auto restart while AC is recovering 8.Overload and short circuit protection 9.Smart battery charger design for optimized battery performance 10.Cold start function
Specification
Model Name
F2 3.5KW
Rated Power
3500VA/3500W
INPUT
Voltage
230VAC
Selectable Voltage Range
170-280 VAC (For Personal Computers ); 90-280 VAC (For Home Appliances)
Frequency Range
50Hz/60 (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. mode)
230VAC±5%
Surge Power
7000VA
Efficiency(Peak) PV to INV
97%
Efficiency(Peak) Battery to INV
94%
Transfer Time
10ms (For Personal Computers); 20ms(For Home Appliances)
Waveform
Pure sine wave
BATTERY & AC CHARGER
Battery Voltage
24VDC
Floating Charge Voltage
27VDC
Overcharge Protection
33VDC
Maximum Charge Current
80A
SOLAR CHARGER
Solar Charger Type
MPPT
Maximum PV Array Open Circuit Voltage
500VDC
Maximum PV Array Power
5000W
MPPT Range @ Operating Voltage
120~450VDC
Maximum Charge Current
100A
PHYSICAL
Dimension(LxWxH) mm
100*300*400
Carton Dimension(LxWxH) mm
590*390*208
Net Weight(kgs)
10
Gross Weight(kgs)
11
Communication Interface
USB/RS232/RS485/WiFi
FAQ
1, Could you offer wholesale price ?
Yes , of course . The price will be adjusted according to your quantity
2, Are the quality of your product guaranteed?
We have QC to control the quality one by one . All UPS and inverters are aged 48-72 hours before being delivered. If there are any defective items , we can refund you or send you new items or accessories as compensation.
3, I'm looking for some products which is not shown on your website, can you make me the special order?
We value our cooperation between us. So, if you can show us the picture of the produce you need, or we design for your according to your idea.
