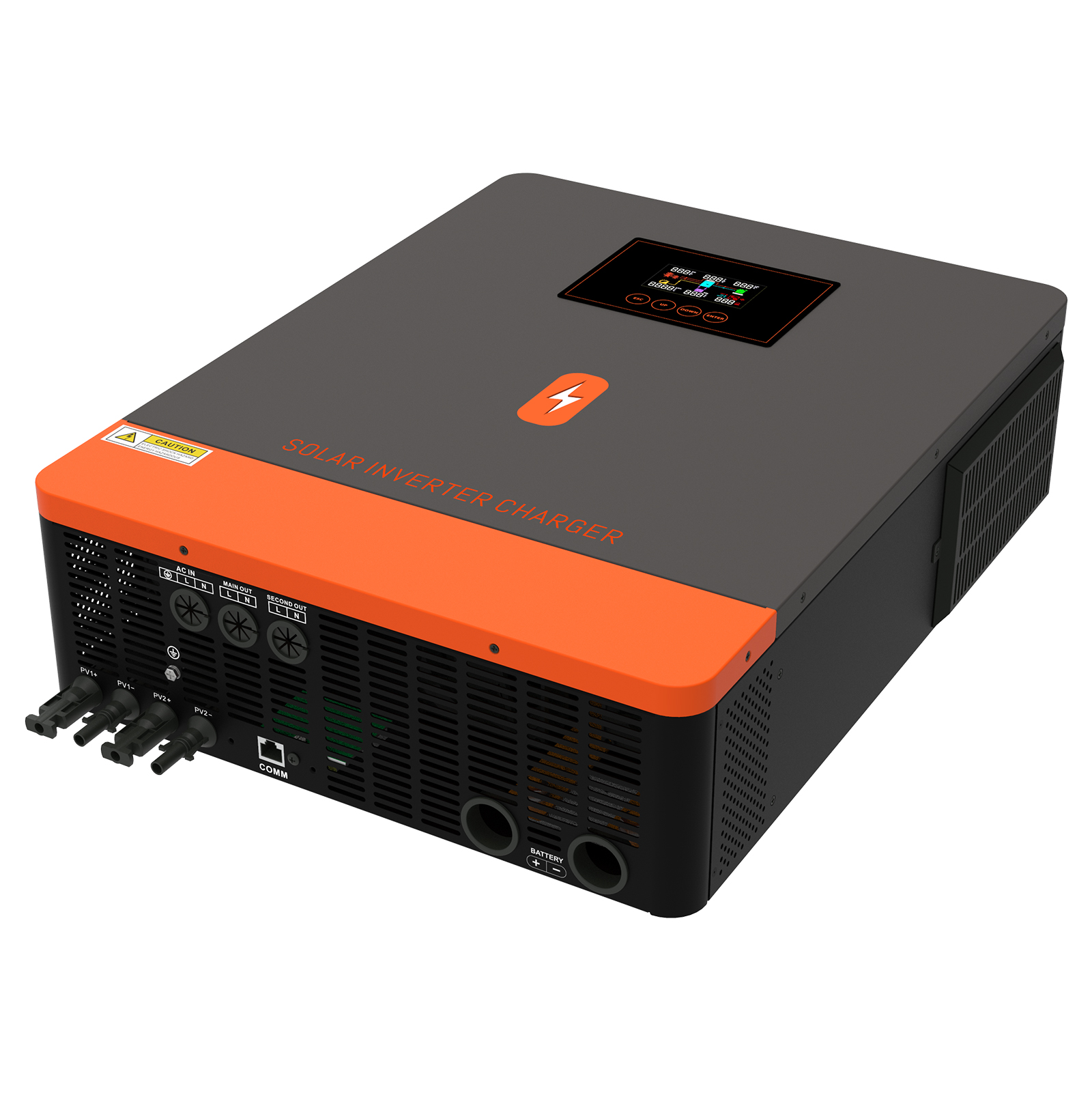

​Skymico P2 10KW Hybrid PV Solar Inverter Pure Sine Wave WIFI 120A MPPT Lithium-ion Compatible
    Publish time 2023-07-13 16:49

Skymico P2 10KW Hybrid PV Solar Inverter Pure Sine Wave WIFI 120A MPPT Lithium-ion Compatible

Key Features:
Pure sine wave inverter
WIFI& GPRS available for IOS and android
Buit-in 120A MPPT solar charge
Buit-in anti-dusk kit for harsh environment (optional)
Compatible with lithium-ion battery
High PV input voltage range(90-450VDC)
Smart battery charge design to optimize battery life
Overload,high temperature,inverter output short circuit protection
Cold restart function

​Skymico P2 10KW Hybrid PV Solar Inverter Pure Sine Wave WIFI 120A MPPT Lithium-ion Compatible


Skymico P2 10KW Hybrid PV Solar Inverter Pure Sine Wave WIFI 120A MPPT Lithium-ion Compatible


Key Features:
Pure sine wave inverter
WIFI& GPRS available for IOS and android
Buit-in 120A MPPT solar charge
Buit-in anti-dusk kit for harsh environment (optional)
Compatible with lithium-ion battery
High PV input voltage range(90-450VDC)
Smart battery charge design to optimize battery life
Overload,high temperature,inverter output short circuit protection
Cold restart function


Specification
ModelP2-10KW
Phase1-Phase
Maximum PV Input Power10000W
Rated Output Power10000W/10000VA
Maximum Solar Charging Current160A
GRID-TIE OPERATION
PV Input(DC)
Nominal DC Voltage/Maximum DC Voltage360VDC/500VDC
Start-up Voltage/Initial Feeding Voltage90VDC/120VDC
MPPT Voltage Range90VDC~450VDC
Number of MPPT/Max Input Current1/27A
GRID OUTPUT(AC)
Norminal Output Voltage220/230/240VAC
Output Valtage Range195~253VAC
Norminal Output Current44.3A
Power Factor>0.99
Feed-in Grid Frequency Range49~51±1Hz
EFFICIENCY
Max Conversion Efficiency(DC/AC)98%
TWO LOAD OUTPUT POWER
Full Load10000W
OFF-GRID OPERATION
AC Input
AC Start-up Voltage/Auto Restart Voltage120-140VAC/180VAC
Acceptable Input Voltage Range90-280VAC or 170-280VAC
Maximum AC Input Current50A
Nominal operating frequency50/60Hz
Surge power20400W
PV INPUT(DC)
Maximum DC Voltage500VDC
MPPT Voltage Range90VDC~450VDC
Numben of MPPT/Max Input Current1/27A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage220/230/240VAC
Output WaveformPure sine wave
Efficiency(DC to AC)94%
BATTERY&CHARGER
Nominal DC Voltage48VDC
Maximum Solar Charging Current160A
Maximum AC Charging Current140A
PHYSICAL
Dimension,D*W*H(mm)420*310*110
Carton Dimension,D*W*H(mm)588*463*205
Net Weight(Kg)14.5
Gross Weight(Kgs)16
INTERFACE
Communication PortRS232/WiFi/Remove LCD/GPRS
ENVIRONMENT
Operating Temperature-10~50℃

FAQ
1. What advantages do we have?
The price is cheap, we have a certain price advantage in bulk purchase and factory purchase.The delivery time is
short. Many brands, with a variety of brands, a variety of categories. One-stop, you only need to face one of our
suppliers, saving you a lot of energy and time.
2.What products can you supply?
Our products include the whole solar PV system covering residential, commercial and industrial level. Also we
supply important components, such as solar panels, solar inverters, combined box, solar battery, mounting bracket,
PV cables, etc.
3. How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment.
4. Why should you buy from us not from other suppliers?
With over 15 years of combined solar energy experience.
5.How do I ship the product to my home?
First of all, after our engineers have custom-made the machine appropriate for you, We will ship the goods to the
destination port by sea. We will aid in the complete process, entire the transportation and customs declaration, and
have no issues about customs clearance and clean receipt of goods.
